SAFETY BARRIERS

Designed to provide protection for a wide variety of plant equipment and areas including columns, control panels, walkways, material handling racks and doorways from unintentional impacts.

AVAILABLE BARRIERS

  • Bollards
  • Multi Barrier Guards
  • Angle Rack Guard
  • Solid Barrier Guard
  • Hand Railing

SAFETY BARRIER PRODUCT LINES

Bollards

Constructed from 0.1875″ thick, 4″ diameter tube and mounted onto a 6″ x 6″ plate. Powder Coated Safety Yellow. Available in various heights and diameters.

Angle Rack Guard

Constructed from 4″ x 4″ x 0.25″ angle mounted onto a 6″ x 6″ plate. Powder Coated Safety Yellow. Available in various heights and widths.

Hand Railing

Modular hand railing. Fittings are made of ductile iron and available in five different sizes. There is no limit to the applications.

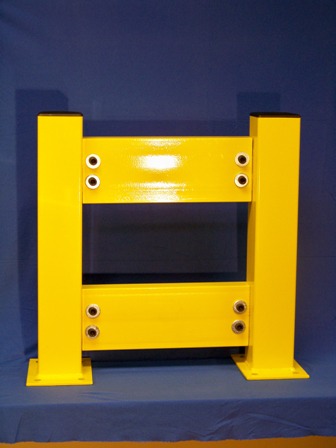

Multi Barrier Guard

STRINGERS are constructed from C6 x 10.5 Channel. Approximate dimension is 6″ Height x 2″ Depth. POSTS – constructed from 4″ x 4″ x .125″ wall square structural steel tubing. Powder Coated Safety Yellow.

Available with single or multiple stringers in various heights and widths.

Solid Barrier Guard

Constructed from 4″ x 4″ x 0.125″ wall square structural steel tubing. Welded to your custom size.
