POSTS

Our standard posts are made from 2×2 or 4×4 sq. tube and create an extremely strong structure that panels, doors and accessories are mounted to. Mounting locations have typically 1/4-20 nutserts, metric sizes are available. Designed to withstand abuse the posts are fastened to the floor with 1/2-13 wedge anchors. Custom sizes available.

All hardware is included for installation

BASIC POST INFORMATION

Description Size
Standard Height 78.25″
Base Plate 6.0″ x 6.0″
Channel Rest(Inside to floor) 5.25″
Post Tube (Material) 2.0″ Sq. 1/8″ Wall
Base Plate (Material) 6.0″ x 6.0″ x 1/4″

POST DETAILS

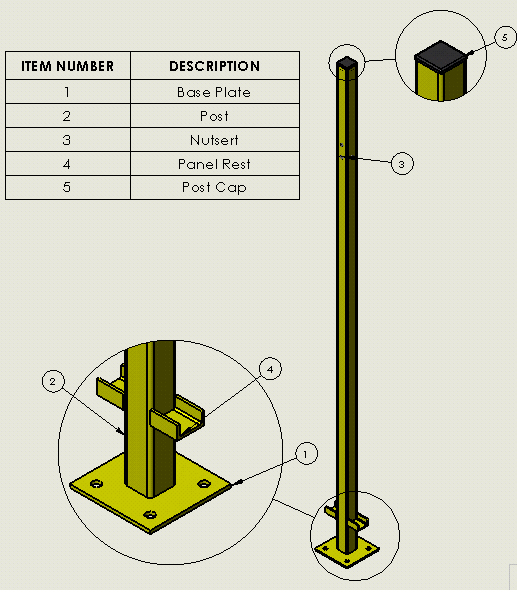

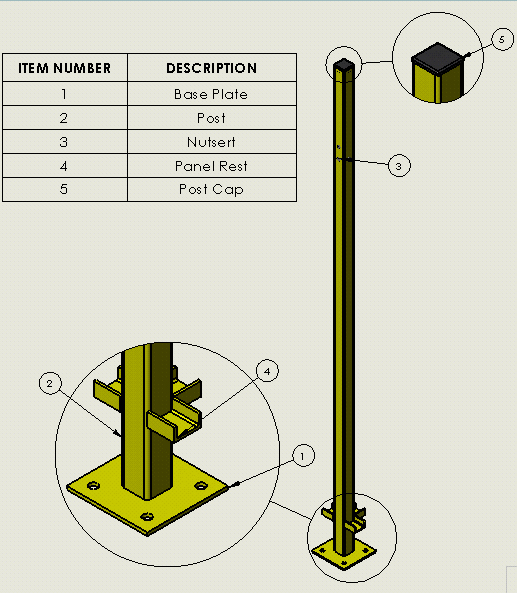

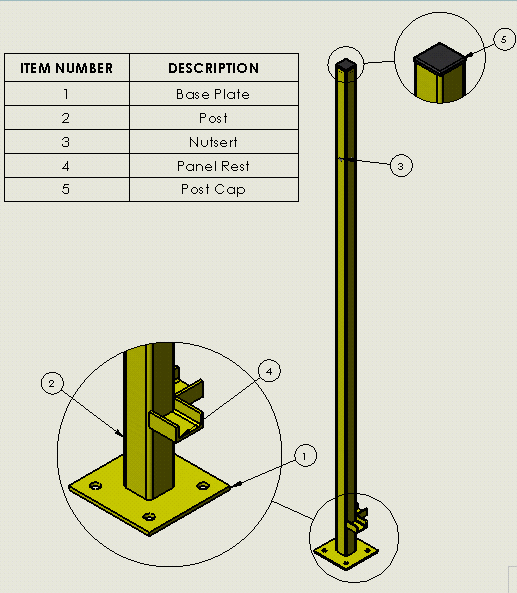

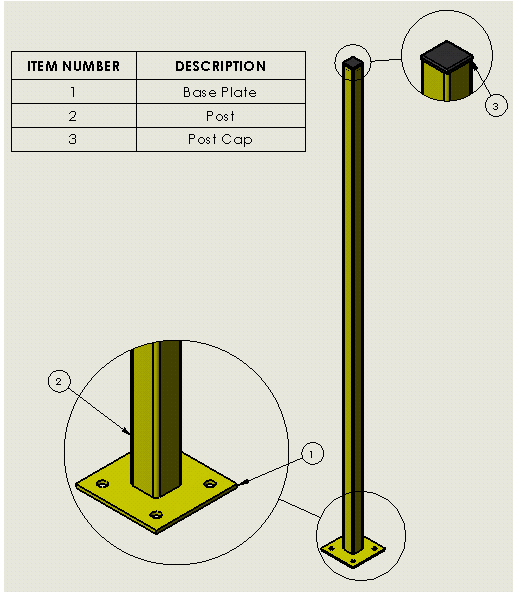

End Post Inline Post Corner Post Straight Post Three Way Post





SWING DOOR POSTS

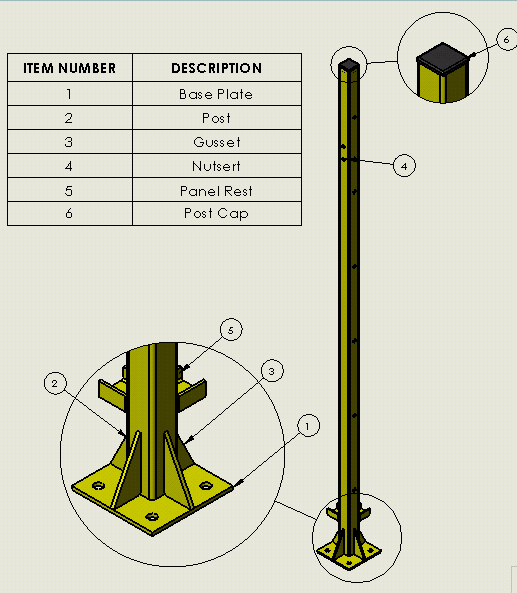

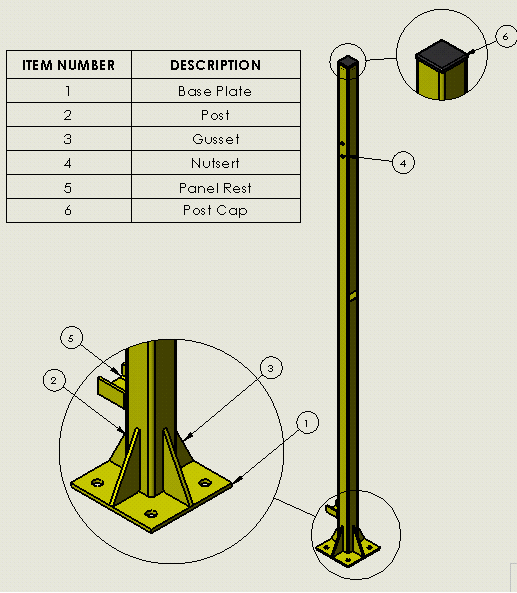

Swing Gate Receiver Swing Gate Hinge


Please note this is not a complete post list. Specialty and job specific posts are available on request.
